The BUG-O DC IV is a dual speed range, positive rack & pinion drive, ready for mounting welding or cutting attachments and accessories. It consists of a DC IV Drive unit mounted on a 12" (305 mm) Carriage. This unit runs on standard Aluminum Rigid Rail & Aluminum Flex Rail.

Technical Data:
Power Requirement: -60 watts at rated voltage:
DC IV: BUG-034_ 120 VAC/50-60/1
BUG-044_ 240 VAC/50-60/1
BUG-054_ 42 VAC/50-60/1

Net Weight: 18 lbs. (8 kg)
Shipping Weight: 20 lbs. (9 kg)

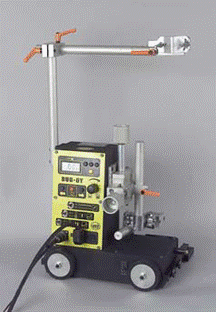

The BUG-GY Fillet Welder is designed for making continuous or intermittent stitch welds on fillet, lap or butt joints. It is a light weight portable carriage that uses powerful magnets and guide wheels to clamp and track on the work piece. The BUG-GY is self-guiding and requires little operator input once it is set up. It can be programmed for stitch welding by distance and features automatic weld back for crater fill.

Between stitch welds the BUG-GY accelerates to a top speed of 120 ipm (300 mm/min). Dynamic breaking and closed loop feed back allow the BUG-GY to make crisp starts and stops and to travel at precise speeds.

Limit switches provide automatic shutoff at the end of the joint.

Technical Data:
Requirements:

AFW-3000 120 VAC/50-60/1
AFW-3002 240 VAC/50-60/1
AFW-3004 42VAC/50-60/1

Travel Modes:1.Continuous 2. Stitch: weld
crater fill
skip

Travel Speeds:
Welding 4-60 ipm (10-152 cm/m)
Skip 120 ipm (300 cm/m)
Net Weight: 27 lbs. (12.5 kg)
Shipping Weight: 34 lbs. (15.5 kg)

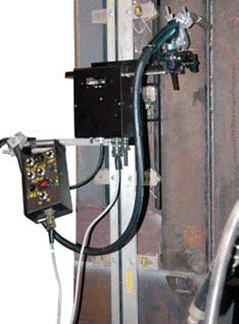

The Universal Bug-O-Matic (BUG-5700, BUG-5702 and BUG-5704) is a compact unit which combines a powerful drive and precision oscillator all in one housing. The unit is lightweight and can easily be handled by one operator. The machine works in all positions and can be used for vertical and overhead welds. By simply changing the carriage, the unit can work on rigid rail, semi-flex rail, hi-flex rail or complete ring rails.

The opening mechanism of the carriage allows the unit to be released or installed anywhere on the rail.
While welding, adjustments can be made to the travel speed, amplitude and oscillation speed as well as dwell left and dwell right. While the machine is welding, the torch can be guided by a separate steering knob.

Closed loop feedback and dynamic braking allow the Bug-O-Matic to make precise starts, stops and travel at a constant speed.

Technical Data:
Power Requirements: BUG-5700 120 VAC/50-60/1
BUG-5702 240 VAC/50-60/1
BUG-5704 42 VAC/50-60/1
Linear Speed: 3-70 ipm (75-1750 mm/m)
Weave Speed: 4-100 ipm (100-2500 mm/m)
Dwell Time: 0-3 seconds, left and right
Weave Width: 0.1-2'' (2.5-50 mm)
Steering: 2'' (50 mm) left and right of center
4'' (100 mm) total
Load Capacity: 30 lbs. (14 kg)
Net Weight: 28 lbs. (13 kg)
Shipping Weight: 33 lbs. (15 kg)
